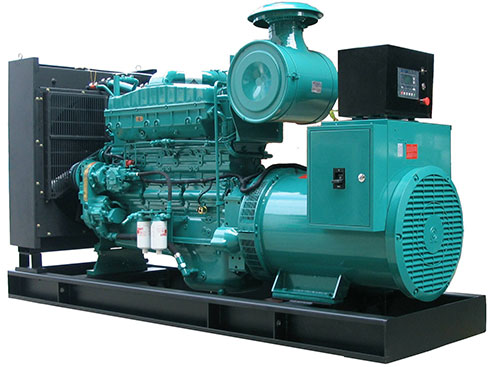

康明斯發電機組
| 機組型號 | 常用功率 | 發動機型號 | 缸數 | 缸徑/行程 (mm) | 外形尺寸 (L×W×H) (mm) | 重量 (kg) | |
| KVA | KW | ||||||
| 東風康明斯系列 | |||||||
| YG-15GF | 18.75 | 15 | 4B3.9-G2 | 4L | 102/120 | 1660×750×1200 | 800 |
| YG-20GF | 25 | 20 | 4B3.9-G2 | 4L | 102/120 | 1660×750×1200 | 800 |
| YG-24GF | 30 | 24 | 4B3.9-G2 | 4L | 102/120 | 1660×750×1200 | 800 |
| YG-30GF | 37.5 | 30 | 4BT3.9-G2 | 4L | 102/120 | 1660×750×1200 | 810 |
| YG-40GF | 50 | 40 | 4BTA3.9-G2 | 4L | 102/120 | 1860×750×1200 | 850 |
| YG-50GF | 62.5 | 50 | 4BTA3.9-G2 | 4L | 102/120 | 1860×750×1200 | 850 |
| YG-64GF | 80 | 64 | 6BT5.9-G2 | 6L | 102/120 | 2160×800×1300 | 1040 |
| YG-75GF | 93.7 | 75 | 6BT5.9-G2 | 6L | 102/120 | 2160×800×1300 | 1056 |
| YG-90GF | 112.5 | 90 | 6BT5.9-G2 | 6L | 102/120 | 2160×800×1300 | 1056 |
| YG-100GF | 125 | 100 | 6BTA5.9-G2 | 6L | 102/120 | 2160×800×1300 | 1096 |
| YG-120GF | 150 | 120 | 6BTAA5.9-G2 | 6L | 102/120 | 2300×850×1300 | 1400 |
| YG-150GF | 187.5 | 150 | 6CTA8.3-G2 | 6L | 114/135 | 2400×860×1380 | 1440 |
| YG-160GF | 200 | 160 | 6CTA8.3-G2 | 6L | 114/135 | 2400×860×1380 | 1440 |
| YG-180GF | 225 | 180 | 6CTAA8.3-G2 | 6L | 114/135 | 2500×960×1450 | 1700 |
| YG-200GF | 250 | 200 | 6LTAA8.9-G2 | 6L | 114/144 | 2640×970×1450 | 2000 |
| 重慶康明斯系列 | |||||||
| YG-200GF | 250 | 200 | NT855-GA | 6L | 140/152 | 2980×1000×1700 | 2320 |
| MTA11-G2A | 6L | 125/147 | 2980×1000×1700 | 2320 | |||
| YG-250GF | 312.5 | 250 | NTA855-G1A | 6L | 140/152 | 2980×1000×1700 | 2450 |
| MTAA11-G3 | 6L | 125/147 | 3150×1050×1700 | 2450 | |||
| YG-300GF | 375 | 300 | NTA855-G1B | 6L | 140/152 | 3100×1000×1700 | 2600 |
| NTA855-G2A | 6L | 140/152 | 3100×1000×1700 | 2600 | |||
| NTA855-G4 | 6L | 140/152 | 3100×1000×1700 | 2750 | |||
| YG-320GF | 400 | 320 | NTAA855-G7A | 6L | 140/152 | 3400×1280×1800 | 3050 |
| YG-360GF | 450 | 360 | NTAA855-G7A | 6L | 140/152 | 3400×1280×1800 | 3050 |
| KTA19-G3 | 6L | 159/159 | 3300×1350×2000 | 3600 | |||
| YG-400GF | 500 | 400 | KTA19-G4 | 6L | 159/159 | 3420×1250×1930 | 3720 |
| YG-450GF | 562.5 | 450 | KTAA19-G5 | 6L | 159/159 | 3550×1550×2100 | 4000 |
| YG-500GF | 625 | 500 | KTAA19-G6A | 6L | 159/159 | 3550×1550×2100 | 4400 |
| KTA19-G8 | 6L | 159/159 | 3550×1550×2100 | 4400 | |||
| YG-600GF | 725 | 600 | KTA38-G2 | 12V | 159/159 | 4260×1650×2350 | 6350 |
| YG-650GF | 812.5 | 650 | KTA38-G2 | 12V | 159/159 | 4260×1650×2350 | 6350 |
| YG-700GF | 875 | 700 | KTA38-G2 | 12V | 159/159 | 4260×1650×2350 | 6350 |
| YG-750GF | 937.5 | 750 | KTA38-G2A | 12V | 159/159 | 4350×1650×2350 | 6650 |
| YG-800GF | 1000 | 800 | KTA38-G5 | 12V | 159/159 | 4500×1850×2350 | 6900 |
| YG-900GF | 1125 | 900 | KTA38-G9 | 12V | 159/159 | 4500×2100×2500 | 7500 |
| YG-1000GF | 1250 | 1000 | KTA50-G3 | 16V | 159/159 | 5100×2280×2500 | 9600 |
| YG-1200GF | 1500 | 1200 | KTA50-G8 | 16V | 159/159 | 5100×2280×2500 | 13000 |
| KTA50-GS8 | 16V | 159/159 | 5100×2280×2500 | 13000 | |||
| 進口康明斯系列 | |||||||
| YG-250GF | 312.5 | 250 | QSL9-G5 | 6L | 114/135 | 3150×1100×1920 | 2420 |
| YG-380GF | 475 | 380 | QSX15-G6 | 6L | 137/169 | 3430×1200×2065 | 4100 |
| YG-400GF | 500 | 400 | QSX15-G8 | 6L | 137/169 | 3430×1200×2065 | 4250 |
| YG-500GF | 625 | 500 | QSK19-G2 | 6L | 159/159 | 3450×1300×2065 | 4550 |
| VTA28-G5 | 12V | 140/152 | 3900×1420×2065 | 6040 | |||
| YG-520GF | 650 | 520 | QSK19-G3 | 6L | 159/159 | 3550×1350×2065 | 4650 |
| YG-600GF | 750 | 600 | VTA28-G5 | 12V | 140/152 | 4040×1420×2065 | 6700 |
| YG-640GF | 800 | 640 | QSK23-G3 | 6L | 170/170 | 4300×1500×2080 | 7000 |
| YG-720GF | 900 | 720 | QST30-G3 | 12V | 140/165 | 4600×1500×2100 | 7450 |
| YG-1025GF | 1281 | 1025 | QSK38-G5 | 12V | 159/159 | 4600×1770×2300 | 9400 |
| YG-1500GF | 1875 | 1500 | QSK60-G3 | 16V | 159/190 | 6150×2300×2550 | 15100 |
| YG-1600GF | 2000 | 1600 | QSK60-G4 | 16V | 159/190 | 6150×2300×2550 | 15400 |
